26mm Performance Carb Kit w/ Mikuni VM26 – All KLX140

In stock
$ 199.95 USD

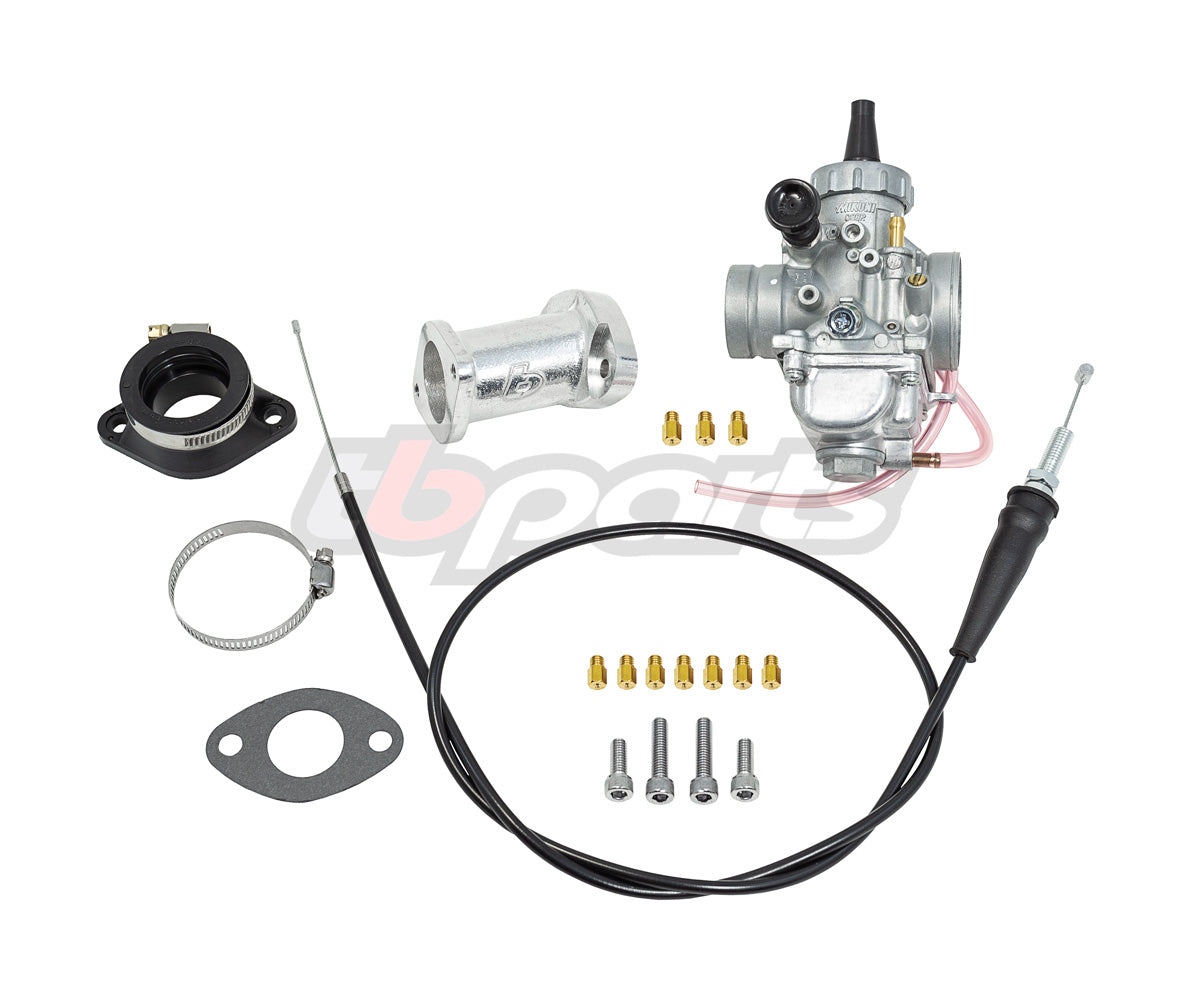

Mikuni VM26mm Performance Carb Kit
This is one of the best, if not the best, carb kit to run on the KLX140 with or without a big bore kit! The Mikuni VM26 has a proven track record of high performance, quality, and easy tuning. The VM26 is +6mm larger than the factory carb so the bike will pick up power everywhere while utilizing the stock air box/filter. We stock replacements for everything in this kit, jets for the carb, and for comparison a replacement OEM carburetor is over $320 alone!
Fitment:
Kawasaki KLX140 (2008-2020)
Kawasaki KLX140G (2017-2020)
Kawasaki KLX140L (2008-2020)
Kawasaki KLX140R (2021-Present)
Kawasaki KLX140RF (2021-Present)
Kawasaki KLX140RL (2021-Present)
Features:
  • Genuine Mikuni VM26mm Performance Carb (Not a cheap Chinese copy carb)
  • Intake Kit port matched to the VM26 and stock cylinder head
  • Main Jet kit (Stock Main Jet size is a #190 – Extra jets sizes 140, 145, 150, 155 (x 2), 160, 165 (x 2), 170, 175 (x 2), 180, & 185.)
  • Extended Throttle Cable for use with the stock bars and throttle or tall bars.
This TBW9205 kit includes:
TBW1539, TBW1546, TBW0399, TBW1353
Factory Jetting Tip:
Stock engine klx140 users at sea level can use 22.5/150 jetting as a baseline for jetting and adjust from there as needed. As you go up in elevation you will need to go leaner on the jetting.
