Trail Bikes 143cc/60mm Race Head V2 Upgrade Kit - 02-09 KLX DRZ 110's - TBW9019
Can also fit 2010-Current KLX110 & 110L (*See fitment info below)
Can also fit 2010-Current KLX110 & 110L (*See fitment info below)

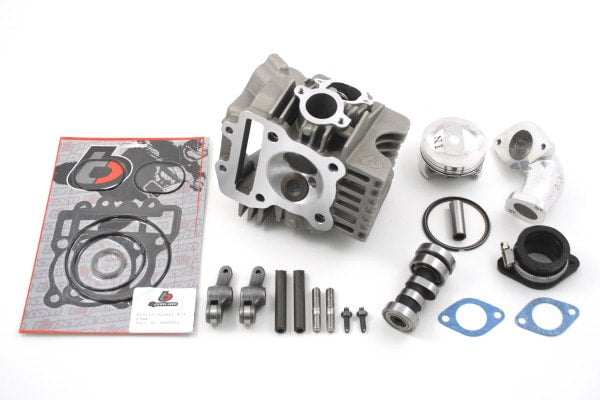

Description:
- Race Head V2 - Roller rockers, 30mm intake valve, 24.5mm exhaust valve, 27mm intake port, 23mm exhaust port (valves installed).
- Race Camshaft V2-1 for Race Head V2
- NEW Lightweight High Compression domed 60mm piston with rings, pin, & clips
- Head gasket kit - includes the cylinder head o-ring set and an exhaust gasket.
- Race Head V2 Intake Kit
- Race Camshaft V2-1 for Race Head V2
- NEW Lightweight High Compression domed 60mm piston with rings, pin, & clips
- Head gasket kit - includes the cylinder head o-ring set and an exhaust gasket.
- Race Head V2 Intake Kit
This kit is to upgrade the cylinder head on KLX110s with a 143 kit installed to our new Race Head V2. While the 143 bore kit provides a nice power gain over stock, wait until you try this upgrade!! The new head may appear to be the same on the outside as our other race head but internally, it has gone through numerous changes. The addition of roller rocker arms and a new camshaft are the biggest changes followed by bigger valves and ports. The exhaust valve is now stainless as well (21-4N material). This all adds up to a cylinder head that puts out a professional level of performance yet is still affordable for the privateer rider. Also, included is a piston with bigger reliefs to match the larger valves of the new race head. Unlike other kits, our head gasket kit also includes a head o-ring set and exhaust gasket so you don't have to re-use your old ones or make a trip to your local dealer to get new ones and spend more money. These are high quality parts and require no machining to the cases or other modifications - bolt on and go!
Add a stroker crankshaft for even more power!
There are no installation instructions, but if you can replace your piston, you can install this kit. If you don't have any experience working on your engine, we highly recommend having a professional technician install this kit or, at a minimum, purchasing the shop manual for your bike available in this section or from your local Kawasaki or Suzuki dealer. The parts are installed in the same manner as the OEM parts.
Fitment:
Kawasaki KLX110 2002-2009*Kawasaki KLX110 and KLX110L 2010 - Present with additional TBW0645 cam sprocket
Suzuki DRZ110 All Years
Replacement Parts:
TBW9017 - Complete Head with Valves and V2-1 Cam (TBW0473)TBW0362 - Intake Manifold Kit
TBW1390 - NEW High Compression Piston kit
TBW0306 - Gasket set
