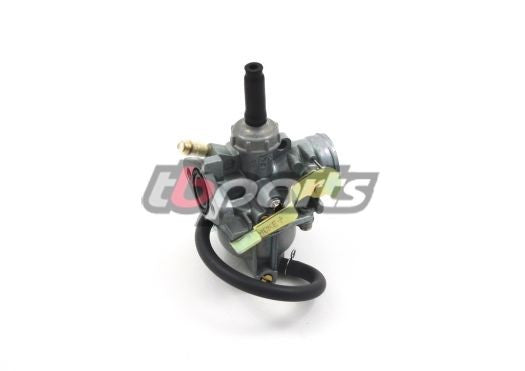

Keihin Reproduction PA Type Carb - Honda Z50 XR50 CRF50 - TBW1107

Only 1 left
$ 43.50 USD
Honda Z50, XR50, & CRF50
Reproduction Keihin PA Type Carb to be used with the stock 49cc engine

Flange is 1-1/4" or 32mm center to center mounting holes
Air Filter end is 28mm O.D., Filter size needed = 1.25"
Overall height top to bottom approximately 110mm

Compatible Jets:
TBW1110 Main Jets
TBW0478 Pilot Jets
TBW0798 Pilot Jets

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Ryan
Great carb for Xr50/crf50

Recently picked up a 2003 XR50r to restore for my daughter, needed a carb and was about to pull the trigger on a new keihin until I found this reproduction style carb. Bolted up perfectly to stock Xr50/CRF50 intake manifold. Using an uni dual stage pod filter the carb has ran absolute perfect going on about 10hrs ride time. I’m near sea level in the 50-70°F range I did have to raise the needle jet clip up to #2 position, other wise running 1.5 turns out on air fuel screw and running better then new! Plus you can change pilot jets on these carbs! Highly recommend!
