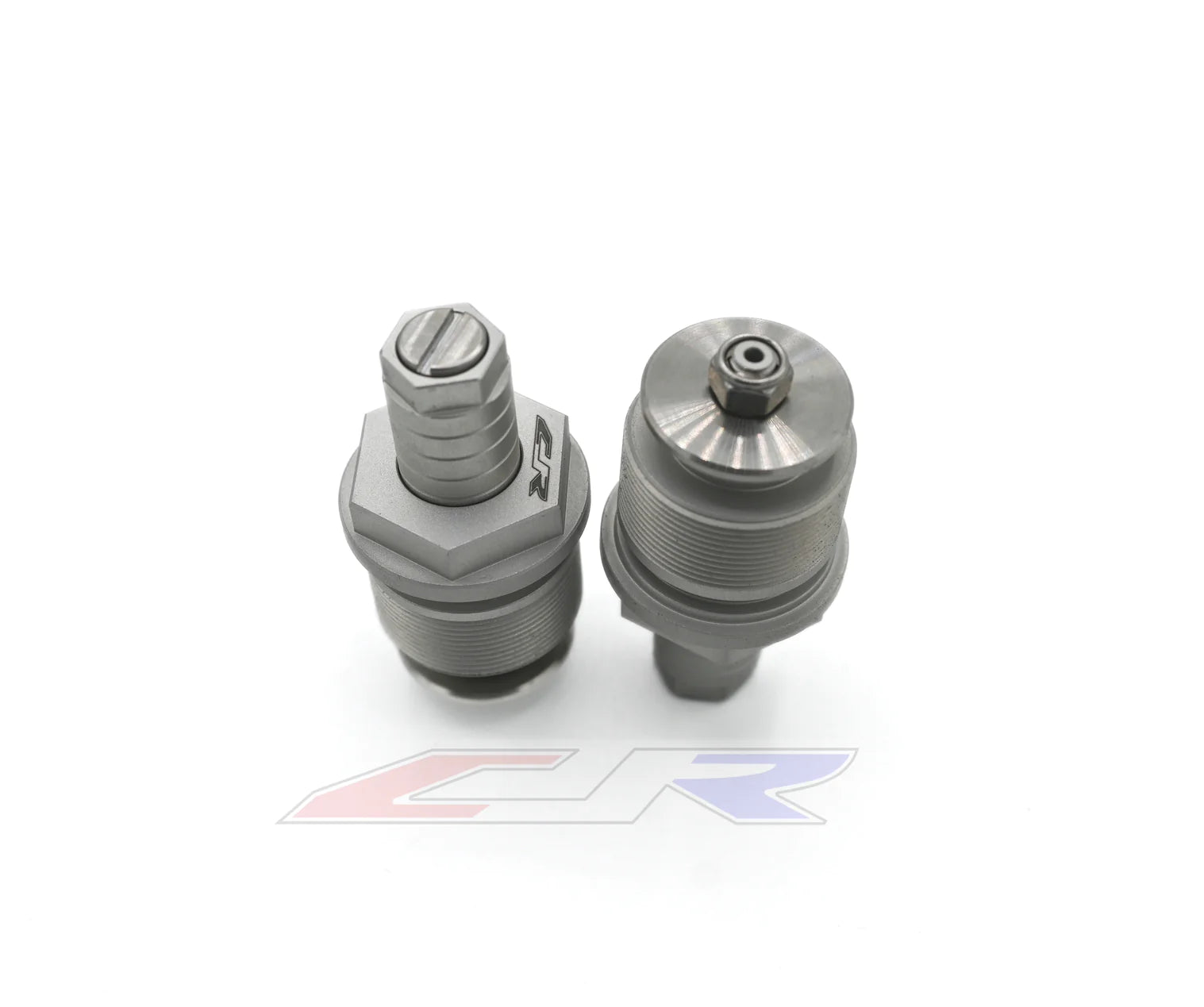

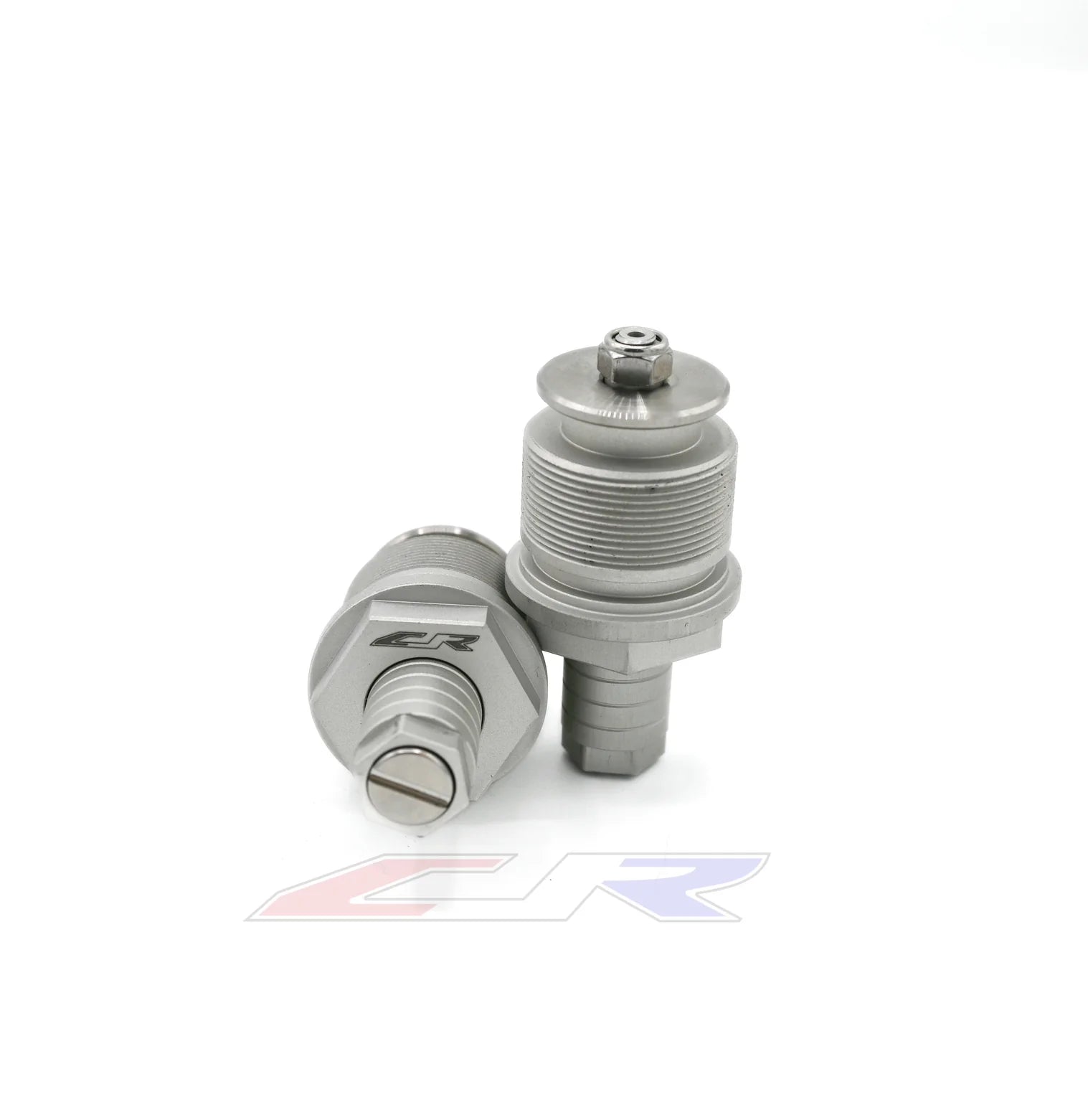

CJR Adjustable Preload Fork Caps w/ Bleeders
Couldn't load pickup availability
Key Features:
Customizable Pre-load - Tailor your motocross experience with precision allowing up to 15.5mm of adjustment. This allows you to fine-tune your bike's suspension to match your riding style and the demands of everyday riding.
Bleeder Screws - Safety is paramount in motocross, and our fork cap includes a built-in air pressure relief mechanism to ensure consistent, controlled handling. This feature minimizes the risk of inconsistent air pressure which can change over time.
Built to Endure - Made from 7075 Aluminum and anodized clear, these are paired with a thick stainless steel lower washer/nut. Our fork cap is designed to withstand the harshest conditions and abuse of riding/racing for years to come.
Easy Installation - You don't need to be a mechanic to upgrade your fork cap. Installing our fork cap is straightforward so you can hit the track in no time.
Sleek and Functional Design - Beyond performance, our fork cap's modern design adds a touch of style to your build.
Kit Includes:
(2) CJR Fork Caps
(2) Adjuster Shafts
(2) O-Rings for inner adjuster shaft
(2) Stainless Steel Washers
(2) CJR Bleeder Screws
(2) Lower Lock Nuts
Not Included and required to remove from OEM cap -
(2) Larger OEM O-Rings from stock fork cap
NOTE- Motion Pro Bleeders Sold Separately!
- Initial pre-load will be 6.75mm over OEM, with up to 15.5mm of additional pre-load
- Each line represents 3.75mm of adjustment
- Top of fork cap for install 24mm
- Top of adjuster cap is 12mm
Note - Recommended for use with aftermarket triple clamp that increase clearance between the fork cap and handlebar. OEM Triple/OEM bars will only allow half of the pre-load adjustment due to the height of the adjuster.
Note - A very small amount of fork oil residue is normal to appear over time when using the bleeder valves function often.
Note - The difference in the CRF110 and CRF125 model is the washer diameter that sits against the lock nut. The CRF110F washers will not work in the CRF125F/FB fork.
Installation -
These will come pre-assembled ready for install!
- Remove OEM Fork Caps
- Remove O-Ring from OEM Fork Caps
- Install O-ring from OEM Caps to CJR Fork Caps
- Install fork cap back onto the fork leg
