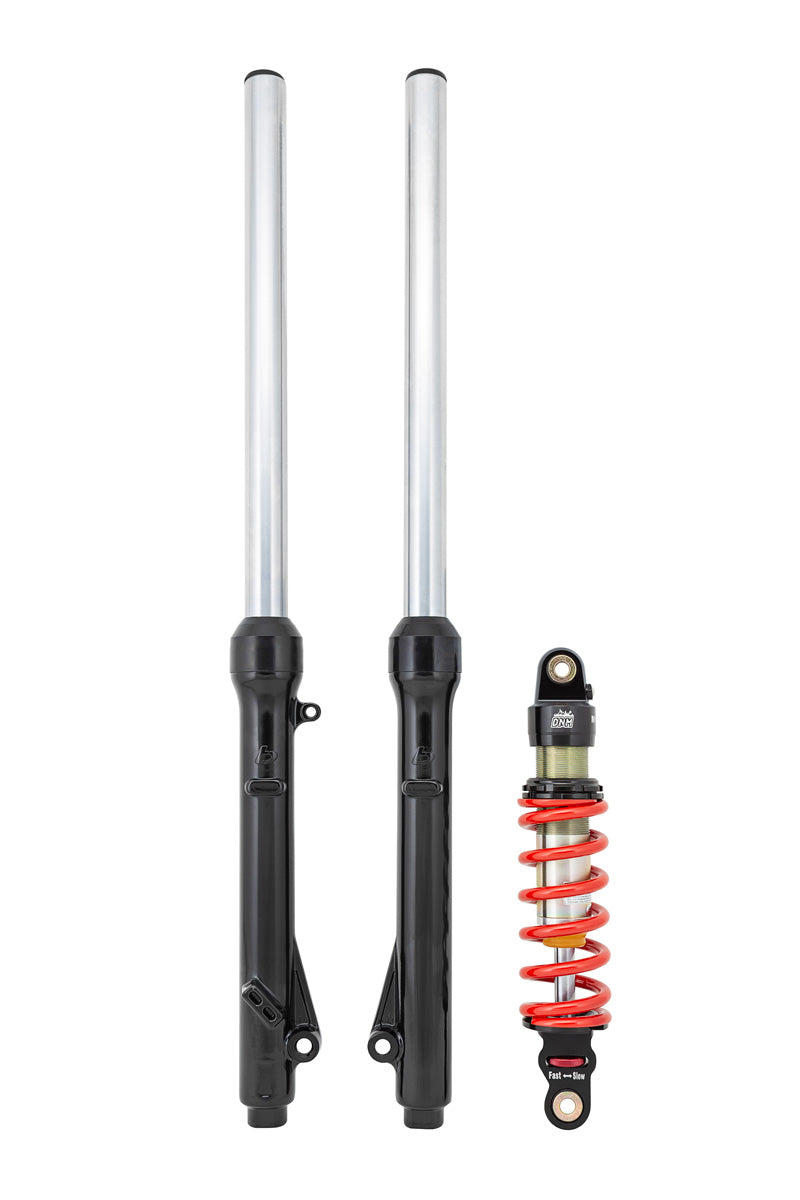

TB Parts Extended Fork Assembly Set for the KLX110. This is our replacement KLX110L fork set, they will work great on your “NON L” KLX110. They are 55mm (Over 2″) longer and a bargain considering OEM replacements are around $550 for a set! They also feature a few key upgrades over the factory forks making them better suited for your MX mini! Starting out are the looks, ours come gloss black and have our TB logo cast into them. Next, adding to the performance is the heavier weighted springs inside that are better suited for adult riders. Going down the list next is the dampening rods. They have been ported to match the heavier springs giving you improved dampening and rebound to keep the front end from becoming a “pogo” stick. It is also lengthened giving you an extra +40mm of travel! Finally, we intergraded an OEM style bushing/guide inside the fork bottom for added strength that the original Kawasaki KLX110 forks do not have. Altogether you cannot beat the “out of the box” performance and value this complete fork set offers.
Key Features:
- +10mm over stock KLX110L forks and +55mm length over regular KLX110 forks.
- HD springs better suited for adult riders
- Improved dampening rod for better dampening and rebound
- Extended Travel +10mm on L models and +40mm on standard
- Strengthened with extra bushings
- Gloss black fork bottom with TB logo cast in
Installations notes:
- These come with 15wt fork oil, if desired you can drain and refill with 5.5oz of your choice of quality fork oil. FMB recommends 20WT for all riders.
- Replacement fork seals TBW1615
DNM Rear Shock, 300LB Spring Rate (not rider weight!)
TBW1708
Improve your ride and handling with these high quality shocks. DNM has been an integrated part of the suspension industry for more than 40 years. Their goal has always been to supply OEM and the aftermarket with high performance suspension technology at an affordable price. This rear shock is from their MK-AR series and consists of the following features:
- Preload and Rebound Adjustments
- 300lb Spring rate great for adults under 165lbs (If your a very aggressive rider you may need the larger 350LB spring for hitting larger jumps)
- Nitrogen Charged Oil Damping
- Hard chromed steel 14mm damper shaft
- High quality surface finish
- 290mm and is for all year models of the KLX110L
It is HIGHLY recommended that you immediately change the oil out for 4.5-5oz of 20wt fork oil. Stock oil is 15wt. Replacement forks seals are the same as OEM.
These are not a direct replacement for the Standard KLX110 (NON L) They will be much longer.
