NEW VERSION as of July 2021
Trimming for the 2019+ CRF110 is no longer required. (mount the rebound side at the top. Or you can cut the frame and install with rebound on swingarm side)

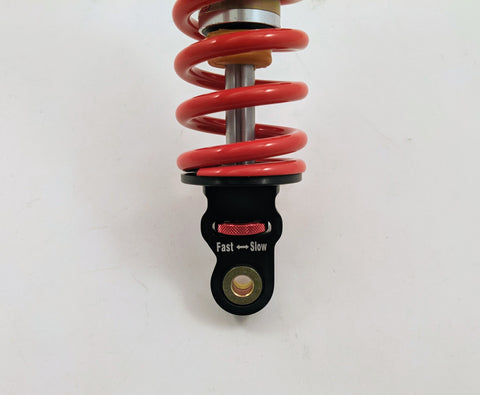

DNM HD Replacement Rear Shock w/ Adjustable Rebound - TBW1206
Fits ALL Honda CRF110's*
(will raise the rear end slightly)
Also used on the KLX110L
2013-2018 CRF110 models = Suggested for use on experienced riders 150lb and up.
2019 and newer CRF110 models = Suggested for riders over 210LBS. Riders under that should consider the softer sprung version found HERE
Fits ALL Honda CRF110's*
(will raise the rear end slightly)
Also used on the KLX110L
2013-2018 CRF110 models = Suggested for use on experienced riders 150lb and up.
2019 and newer CRF110 models = Suggested for riders over 210LBS. Riders under that should consider the softer sprung version found HERE
KLX110L = Suggested use for experienced riders that are 150-225lbs. May work for heavier riders depending on skill.
DETAILS:
DETAILS:
- Adjustable rebound
- 290mm length eye to eye
- 290mm length eye to eye
- Uses a 350lb/inch spring coil
- Raises rear of bike. Sits level when using extended damping rods
- Developed specifically for the Honda CRF110
- Developed specifically for the Honda CRF110
Stock Honda CRF110F Shock Lengths
2013-2018 models = 279mm or 11"
2019 and newer model = 285mm or 11.2"KLX110L = 287mm or 11.3"
