Gold Valve Cartridge Emulator Kit - CRF/KLX/TTR

  • Sale
  • $ 189.95
  • Regular price 189.95
1 review


Racetech Gold Valve Cartridge Emulator Kit
Fits the stock CRF110/KLX110/TTR110/KX60 forks

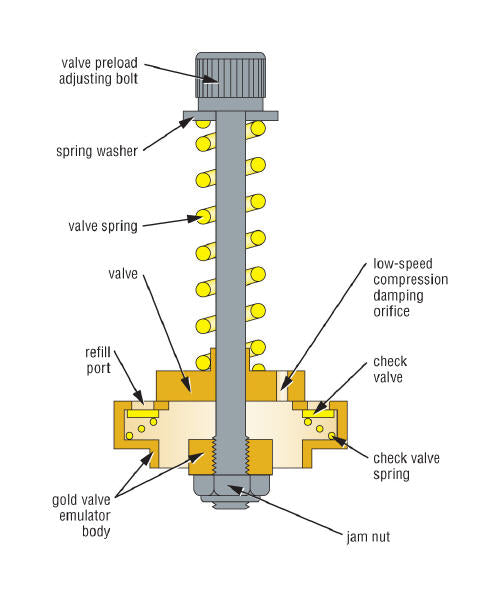

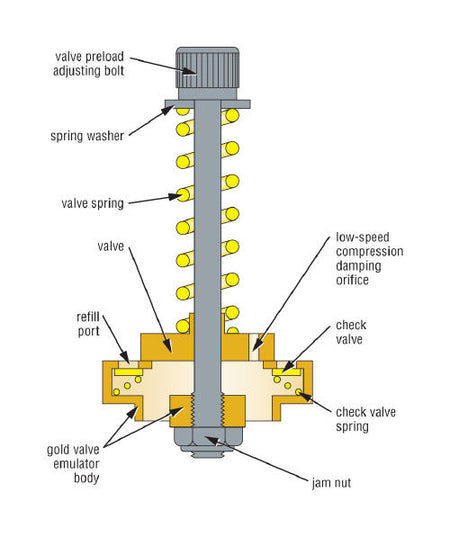

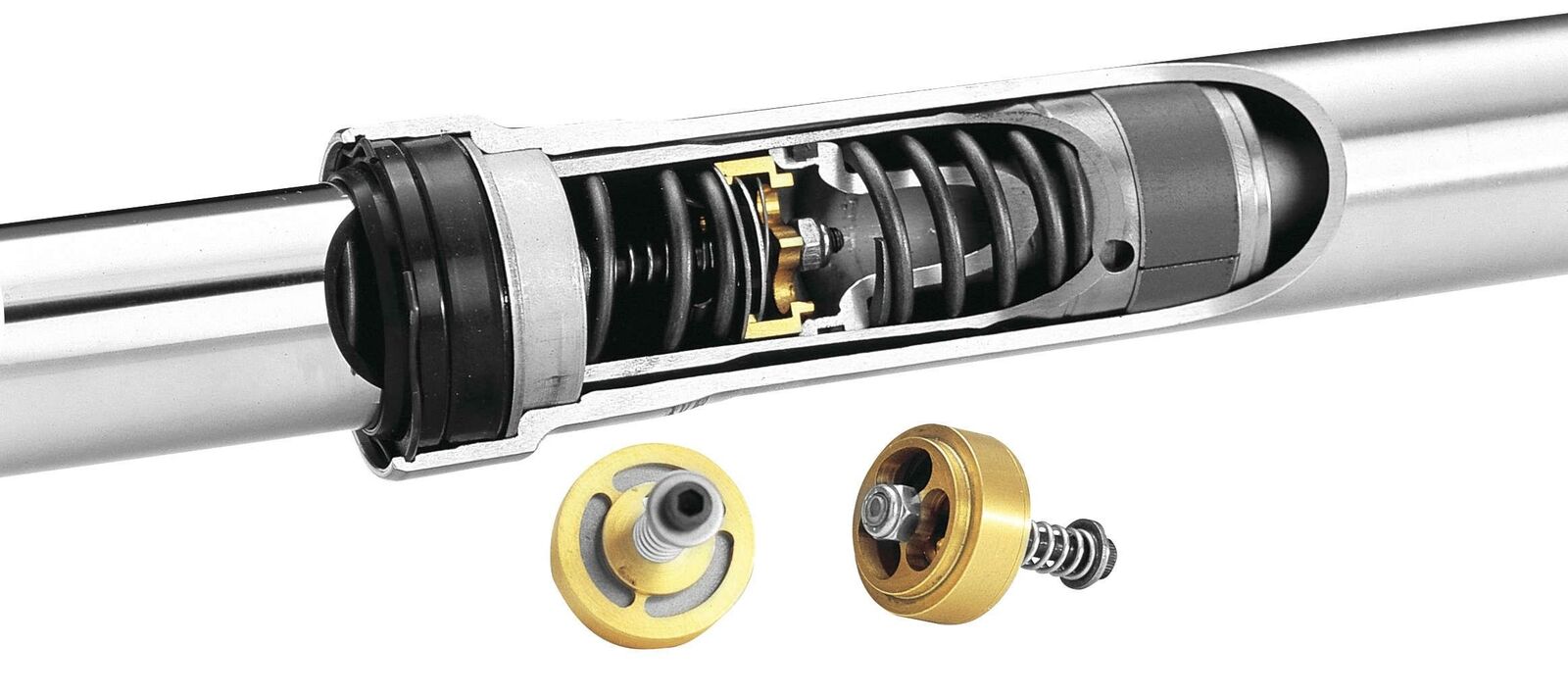

Damping Rod style forks are notorious for being both too harsh, too mushy and too easy to bottom. Gold Valve Cartridge Emulators remedy this problem by controlling the damping with a tunable valve that sits on top of the damping rod and is held in place by the main spring.  Simply put, Emulators make damping rod forks perform like well-tuned cartridge forks.

NOTE for NON L Forks - When using these emulators on the standard KLX110 forks we highly suggest running the racetech springs so that you can get the proper preload with them. Using the BBR springs will put about 50mm of preload and it will be VERY harsh. We recommend 5-7mm of preload to get them setup properly.

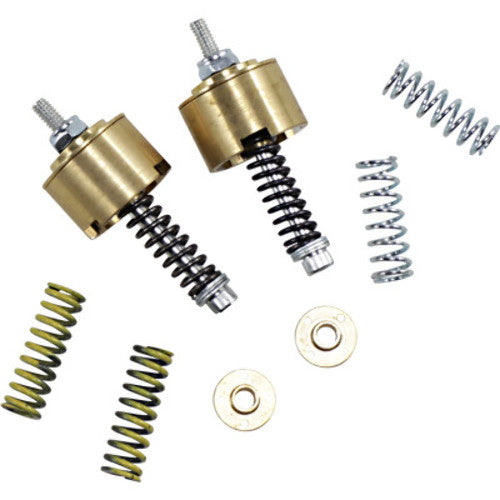

Kit Includes:
  • Gold Valves (1 Pair)
  • Includes one pair of each spring rate; 26lb Silver, 40lb Blue, 64lb Yellow and 101lb Red
  • Includes 3 options for Valve plate bleed holes. (no holes, 2 holes, 4 holes)

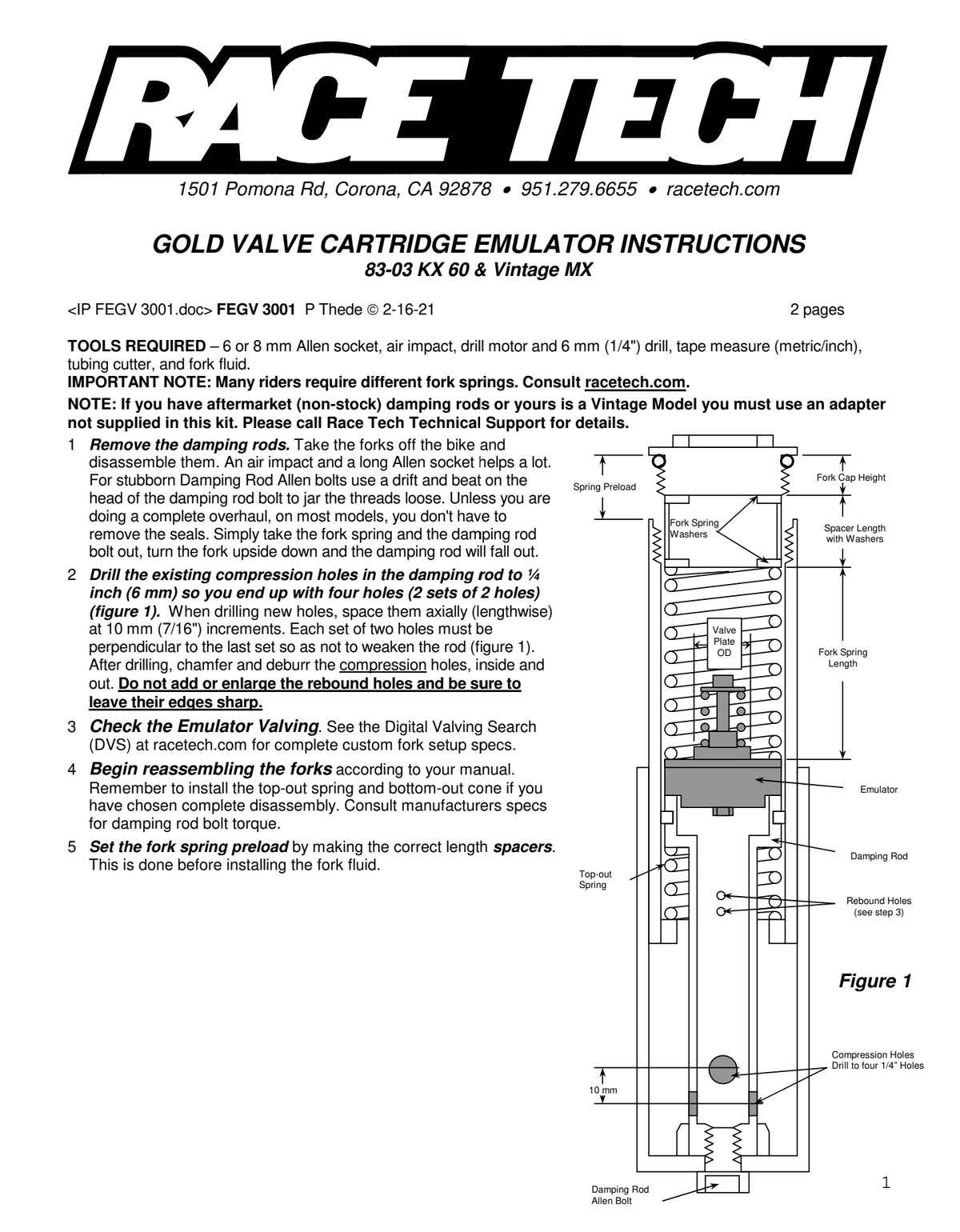

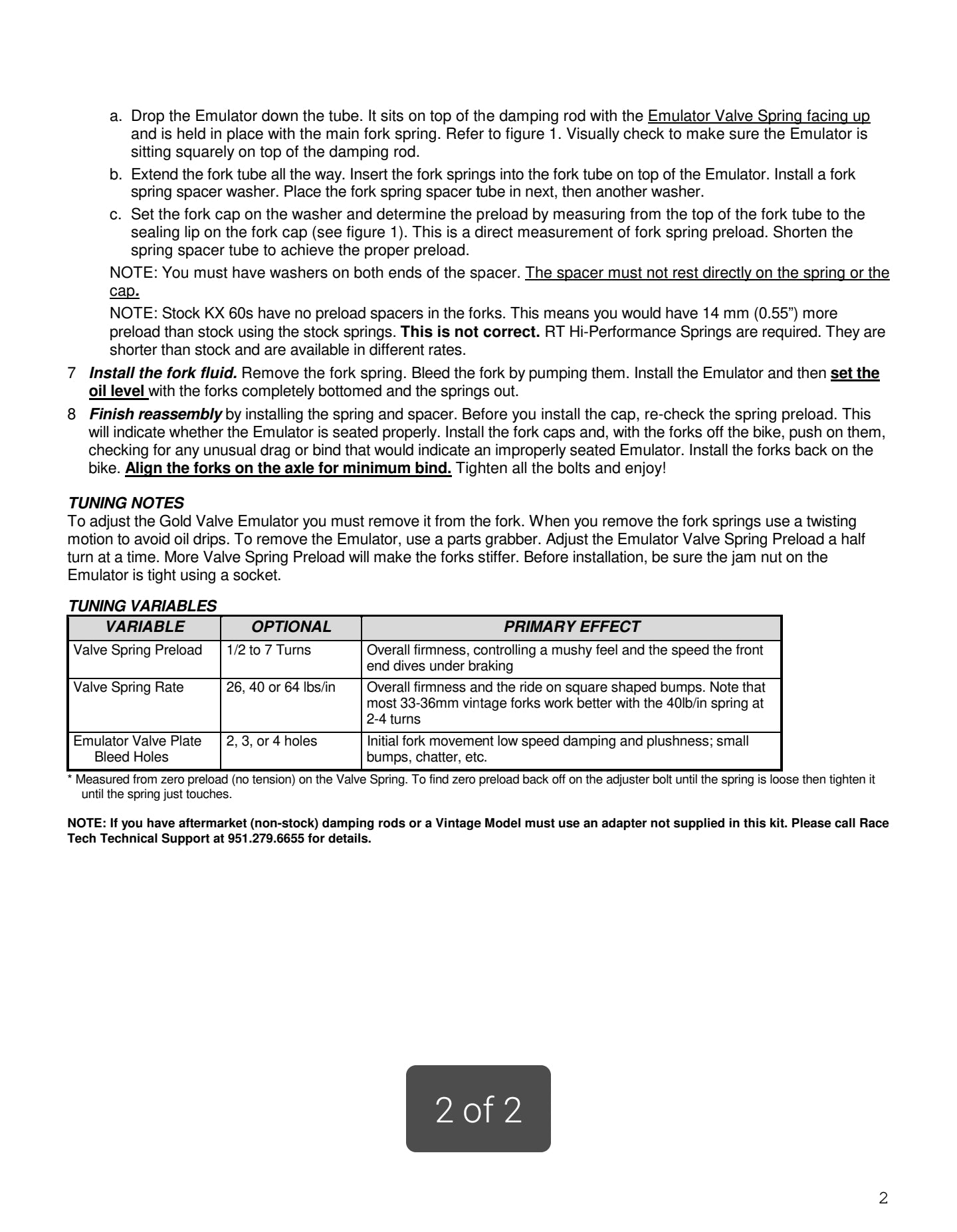

  • Require Damping rod modification. See Installation Instructions in pictures for more details.


  • 2013-Current Honda CRF110
  • 2002-Current Kawasaki KLX110
  • 2010-Current Kawasaki KLX110L
  • 2008-2012 Kawasaki KLX140L
  • 2008-2012 Kawasaki KLX140
  • 1983-2003 Kawasaki KX60
  • 2008-Current Yamaha TT-R110
  • 2008-2019 Yamaha XT250
  • 2003-2006 Suzuki DR-Z110
  • 1976-1977 Suzuki RM370
  • 1977-1978 Suzuki RM125
  • 1976-1978 Suzuki RM250
  • 1982-1983 Honda CR80R
  • 1973 Honda XL350R
  • 1981 Honda XL500R
  • 1978 Suzuki RM400
