NEW VERSION as of July 2021
Trimming for the 2019+ CRF110 is no longer a must. (mount the rebound side at the top if you dont want to cut the frame. Or you can cut the frame and install with rebound on swingarm side like it should be)

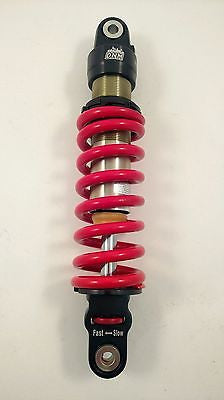

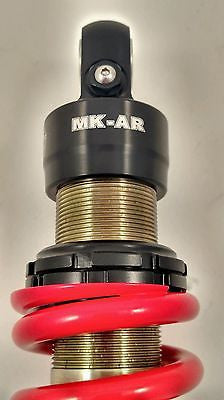

DNM HD Replacement Rear Shock w/ Adjustable Rebound - TBW1205
Fits ALL Honda CRF110's*
(will raise the rear end slightly)
Also used on the KLX110L
Fits ALL Honda CRF110's*
(will raise the rear end slightly)
Also used on the KLX110L
2013-2018 CRF110 models = Suggested use for beginner riders that are 100-135lbs. Not recommended for faster adult riders that are 125lbs+.
2019 and newer CRF110 models = Suggested weight range for this rate would be up to 180LB riders. Riders over that should consider the stiffer spring version found HERE
KLX110L = Suggested use for beginner riders that are 120-150lbs. Not recommended for faster adult riders that are 150lbs+. Riders over that should consider the stiffer spring version found HERE
DETAILS:

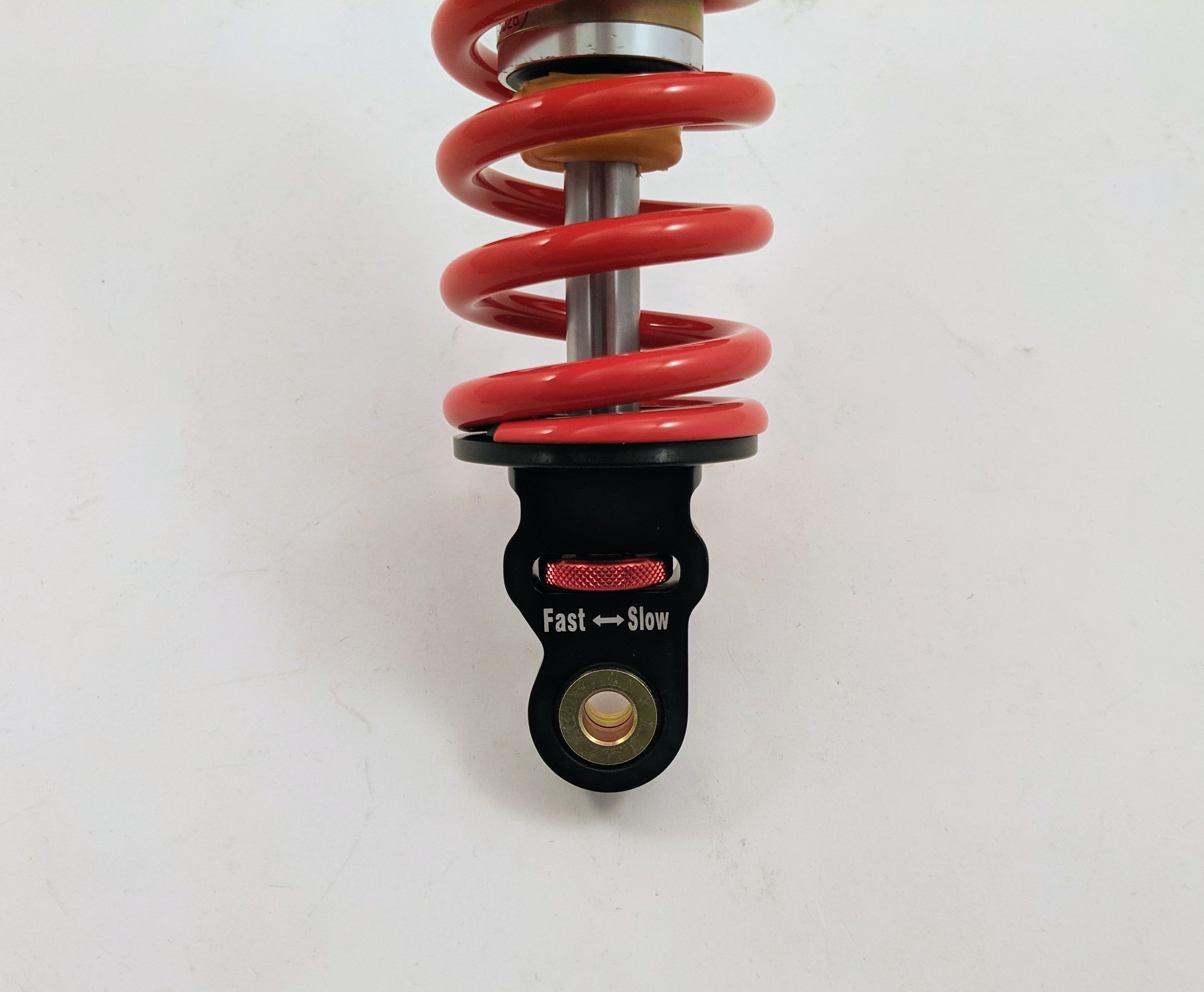

- Adjustable rebound
- 290mm length eye to eye
- 290mm length eye to eye
- Uses a 250lb/inch spring coil
- Raises rear of bike. Sits level when using extended damping rods
- Developed specifically for the Honda CRF110
- Developed specifically for the Honda CRF110
Stock Honda CRF110F Shock Lengths
2013-2018 models = 279mm or 11"
2019 and newer model = 285mm or 11.2"
KLX110L = 287mm or 11.3"
