BBR Top Clamp and Bar Mount - KLX110/L

Only 1 left
$ 249.95 USD
Color
Fits The Following Bikes:
Kawasaki KLX110/L 2002-Current
Suzuki DR-Z110 2003-2005

Description:
Tired of hitting your knees against the bars of your KLX110 or DR-Z110 while riding? No need to worry, BBR has you covered with their machined from billet aluminum and anodized black or silver top clamps!

  • Billet 6061 triple clamp
  • Double pinch bolt design with larger clamping surface
  • 4-position bar mount
  • Black or silver anodized finish

Bar mount is made for 7/8" handlebars.

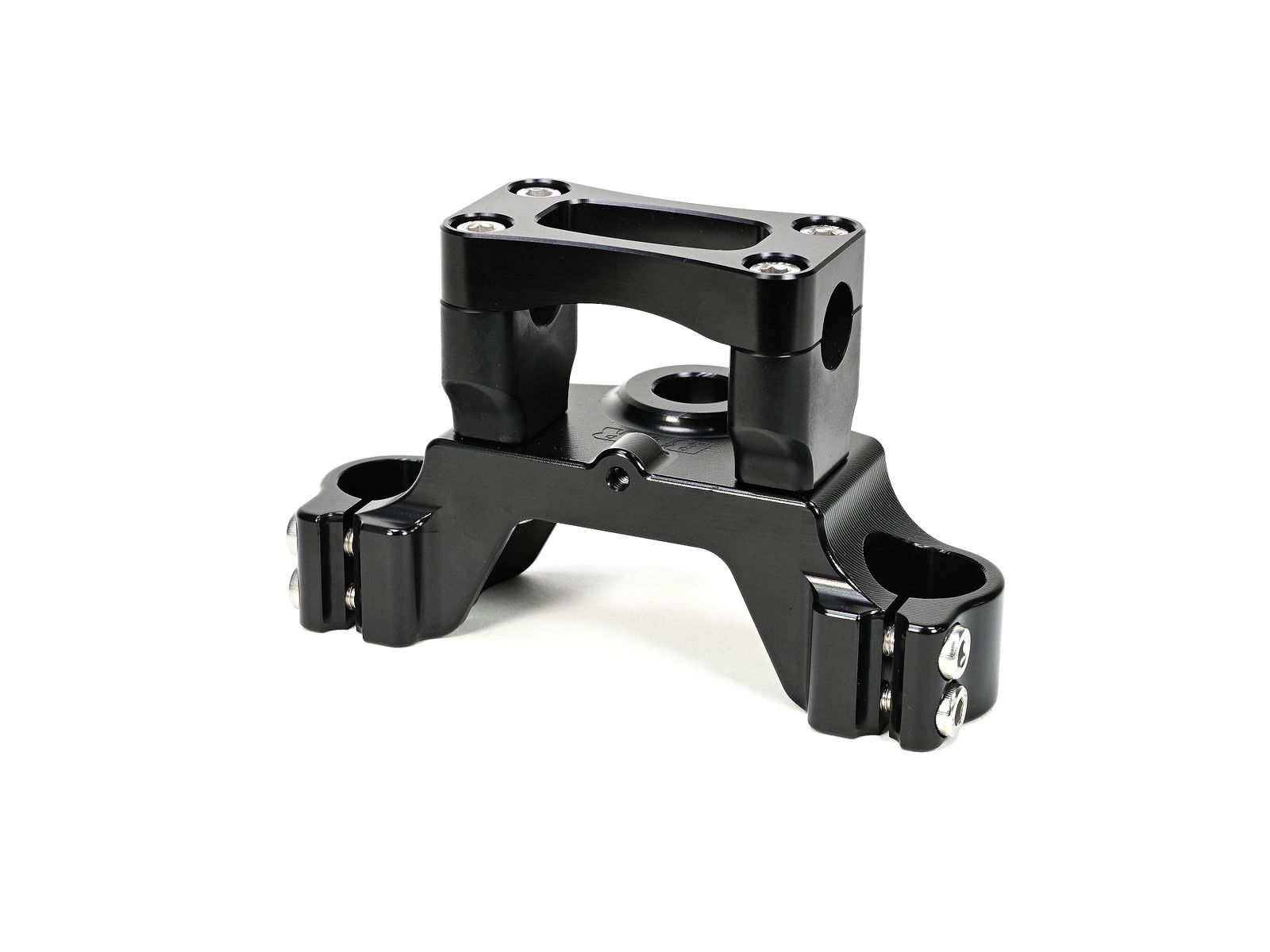

Black Anodize P/N: 510-KLX-1171

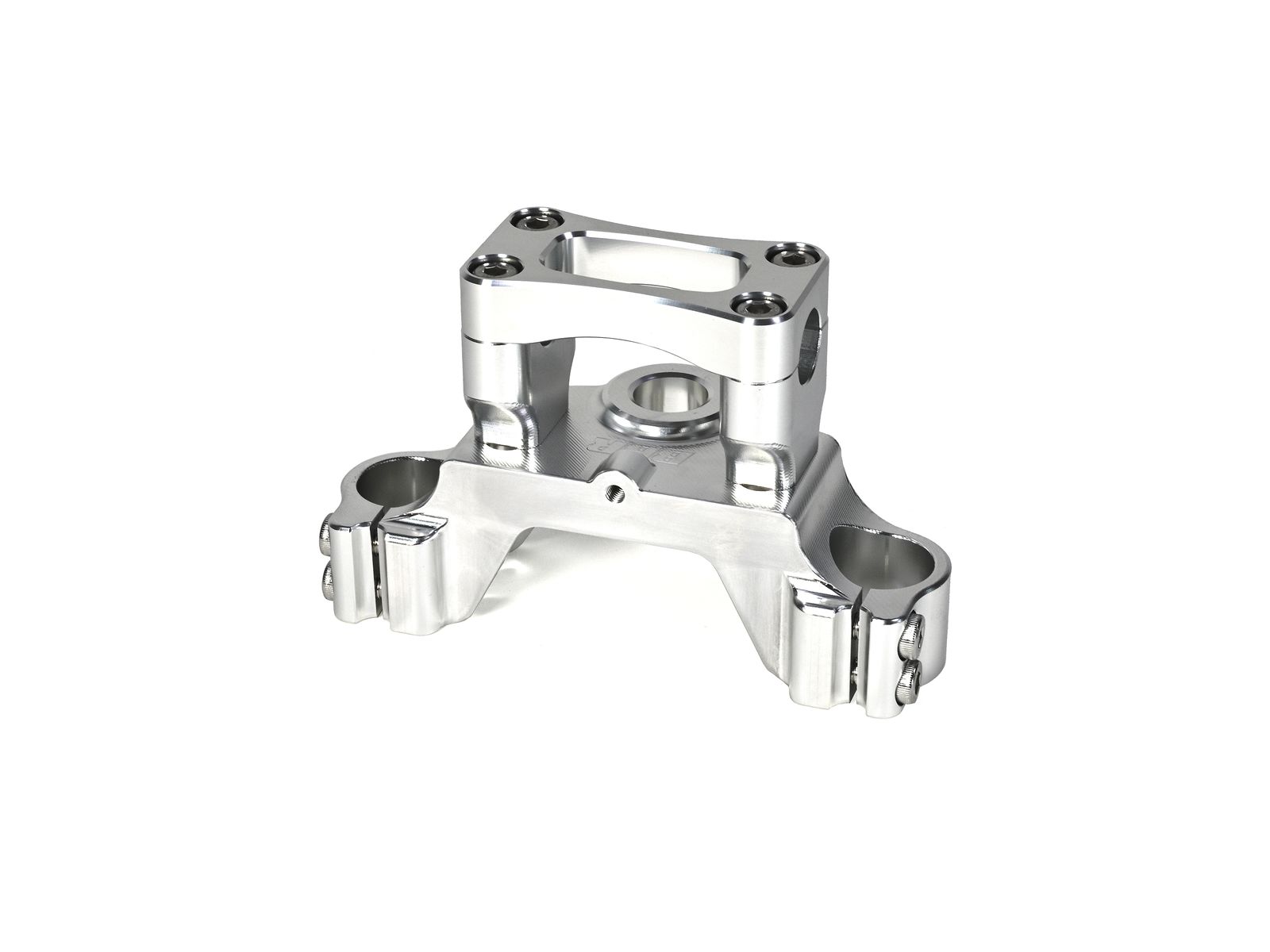

Silver P/N: 510-KLX-1131


Specifications:
Stock KLX110RL triple clamp:
Bar offset 17mm behind fork tubes
Bar rise 40mm above spanner nut

BBR triple clamp dimensions:
Bar offset options: 12mm/7mm behind fork tubes, or 2mm/7mm in front of fork tubes
Bar rise 51mm above spanner nut
